The WALL series offers modular substations. You can thus choose your mix from more than 30 types of input and output cards. The base units w750-8101 and w750-8102 differ in the presence of a serial interface. For easier ordering and assembly, we also deliver them in sets already including I/O cards, while the sets can be expanded on site with additional standard I/O cards as needed. wCIO and wMX are equivalents of the ICIO and markMX models from the mark series. Their variants with the ending com contain a serial line.
| Type | AI | AO | DI | DO | RS232/RS485 | LAN | .NET |
| w750-8101 | - | - | - | - | - | 2 | - |
| w750-8102 | - | - | - | - | 1 | 2 | - |
| w751-9301 | 4 | 2 | 8 | 4 | 1x 485 | 2 | Yes |
| wCIO | 8 | 8 | 8 | 8 | - | 2 | - |
| wCIOcom | 8 | 8 | 8 | 8 | 1 | 2 | - |
| wMX | 16 | 8 | 32 | 32 | - | 2 | - |

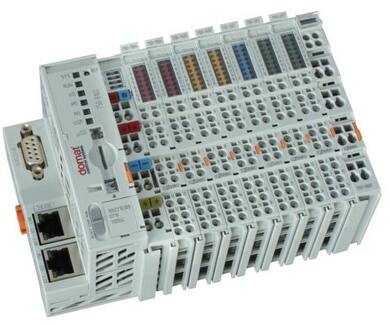

| wMXcom | 16 | 8 | 32 | 32 | 1 | 2 | - |
Full support of the wall process stations is part of the new Domat IDE release published together with the wall series market introduction in January, 2020. The main advantages of the wall PLCs is less occupied space in the panel together with possible extensions by standard I/O cards, inclusive communication cards (in the introduction phase the RS485 card with galvanic separation).
AutoCAD and EPLAN macros for designers are available at the Domat website in the Downloads section.
The new wall series is fully compatible with other components of the Domat system, such as terminals (HT200), mobile application Domat Visual, SCADA, Database, energy management portal ContPort, and other products.
See details in the current pricelist as well as in the respective product data sheets.
Learn Domat program in the software and you will be supported in two different systems, wall (card) and mark (modular). The mark line does not end there and will be further developed and you will be even stronger on the market with the Domat control system.
New in the portfolio is the compact PLC w751-9301 with integrated inputs, outputs and larger memory for .NET drivers enabling communication with Daikin, Hauser systems and the use of a file driver
Also read: Properties of hardware platforms with Domat Runtime.
