HT102, HT200 terminal: template upload/connection problems

1. Graphics or text at the terminal are not displayed after definition upload

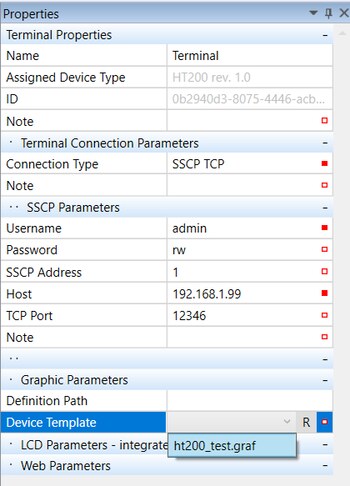

Select the correct device template in the text or graphics Terminal properties.

2. Can not log into a HT200 terminal

Double click the terminal editor or right-click the terminal to open the editor. In the User rights tab see the defined users , and their rights and passwords. Edit the records if necessary.

3. Can not upload a solution to terminal

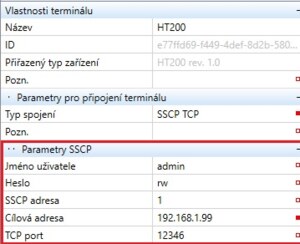

Check the SSCP parameters (user name, password, SSCP address, target address, TCP port) in the Terminal properties.

4. After a terminal is uploaded, there is no communication with data points

Check the SSCP parameter setting in the device in the terminal channel. The SSCP parameters must match those configured in the PLC.
